Megawatt Battery Charging System by Designwerk Technologies

The smarter E AWARD Winner 2024 – Category: E-Mobility

Designwerk Technologies was named as winner of the The smarter E AWARD 2024 in the Category "E-Mobility" for the application of its Megawatt Battery Charging System.

Megawatt Battery Charging System by Designwerk Technologies

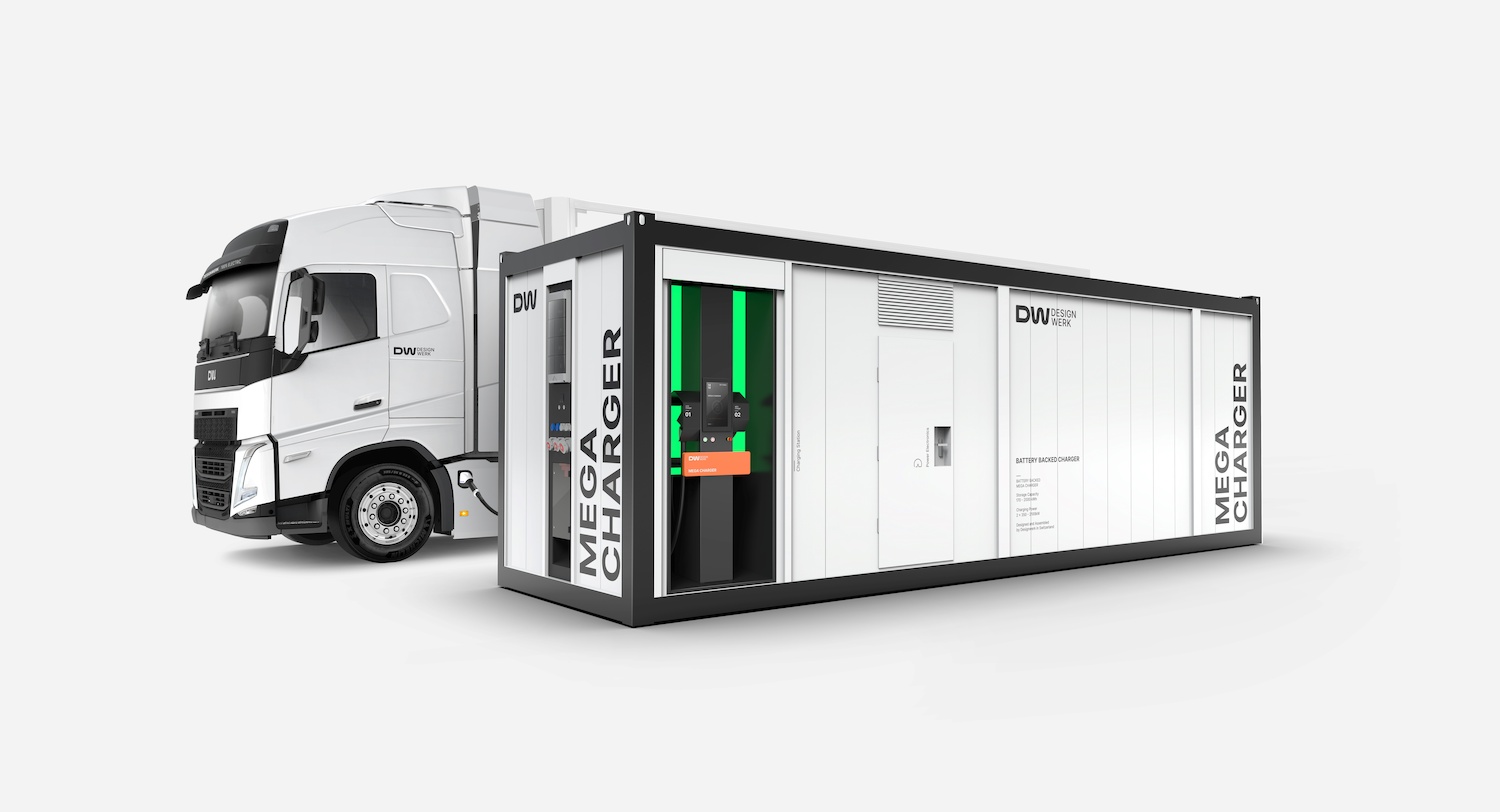

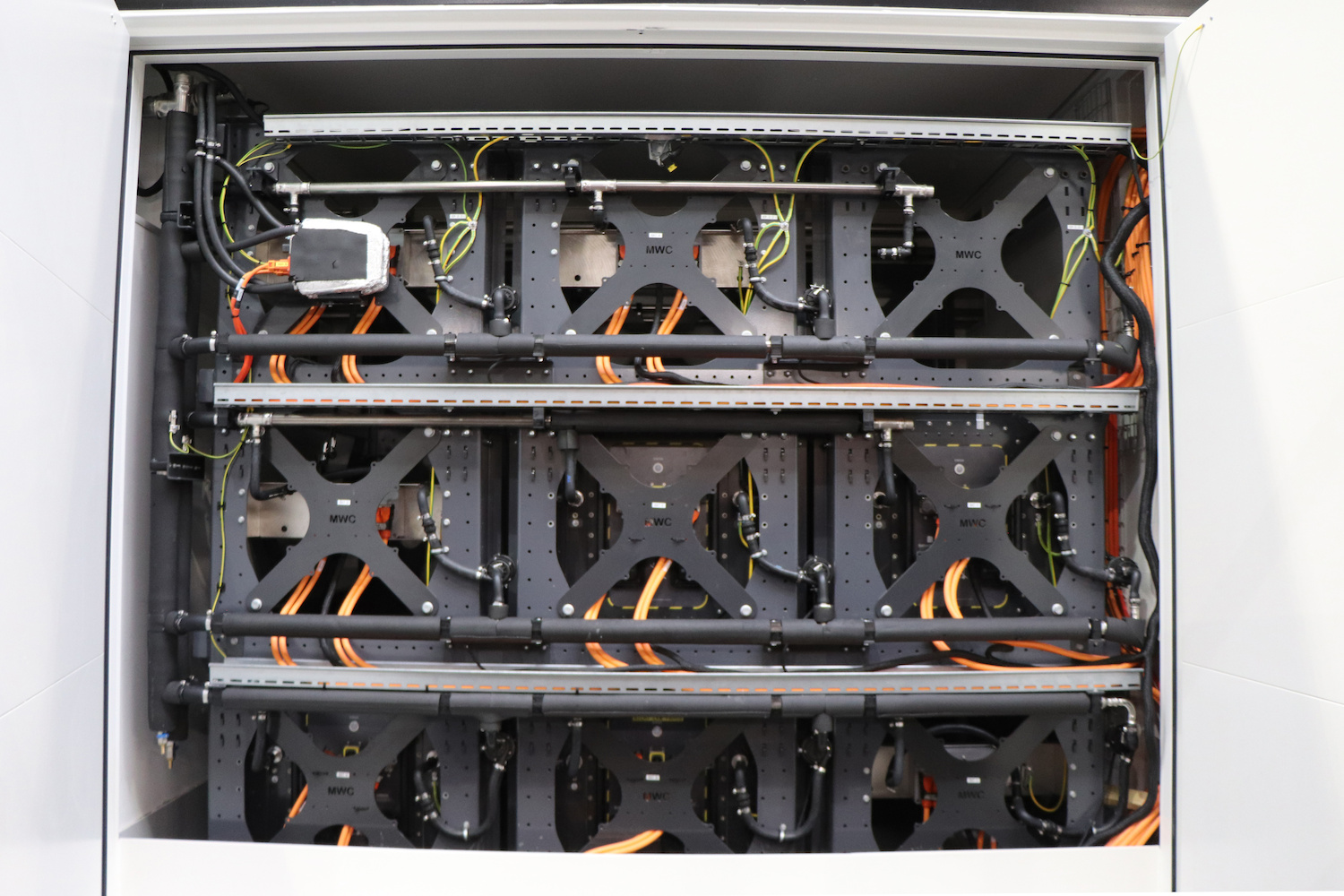

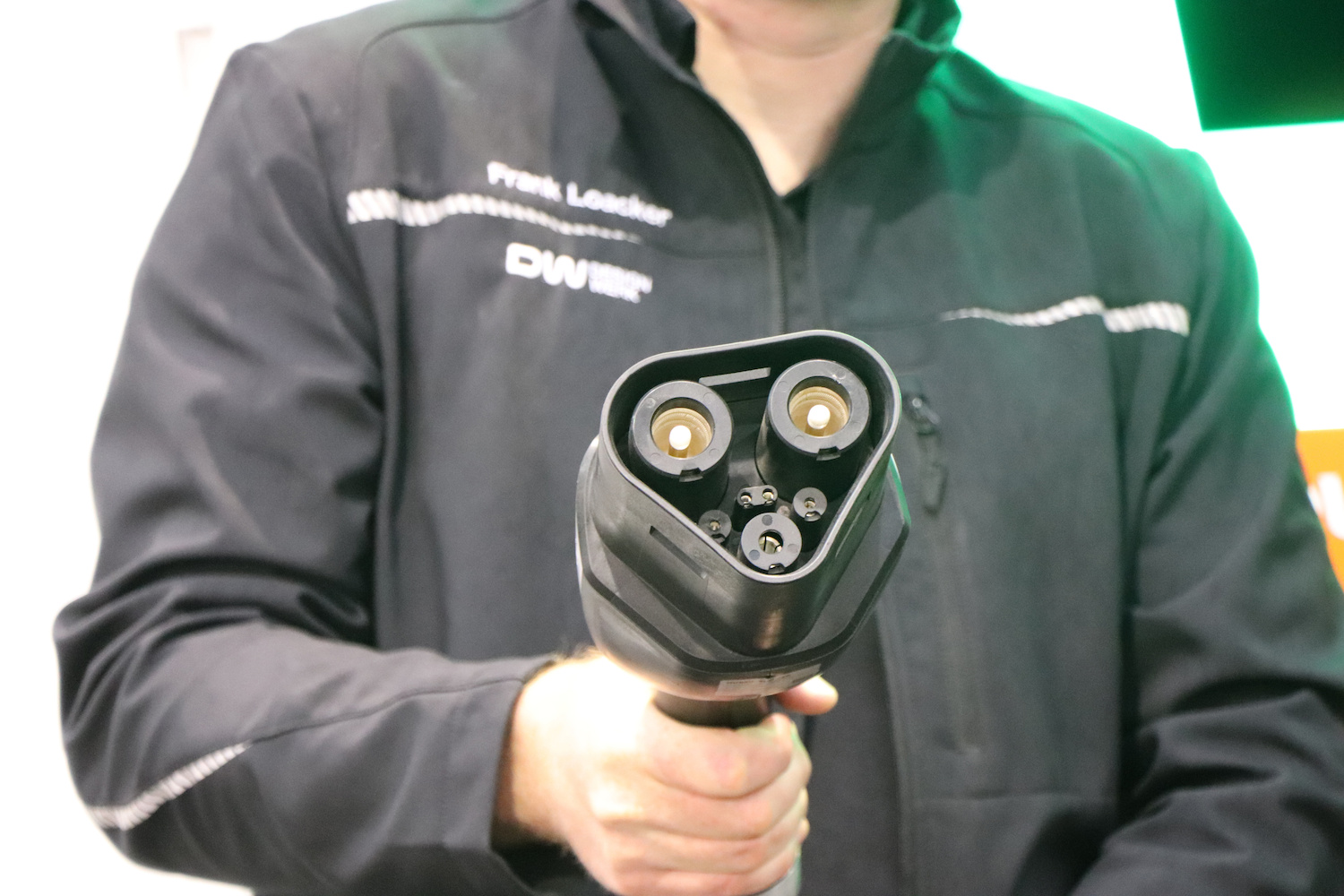

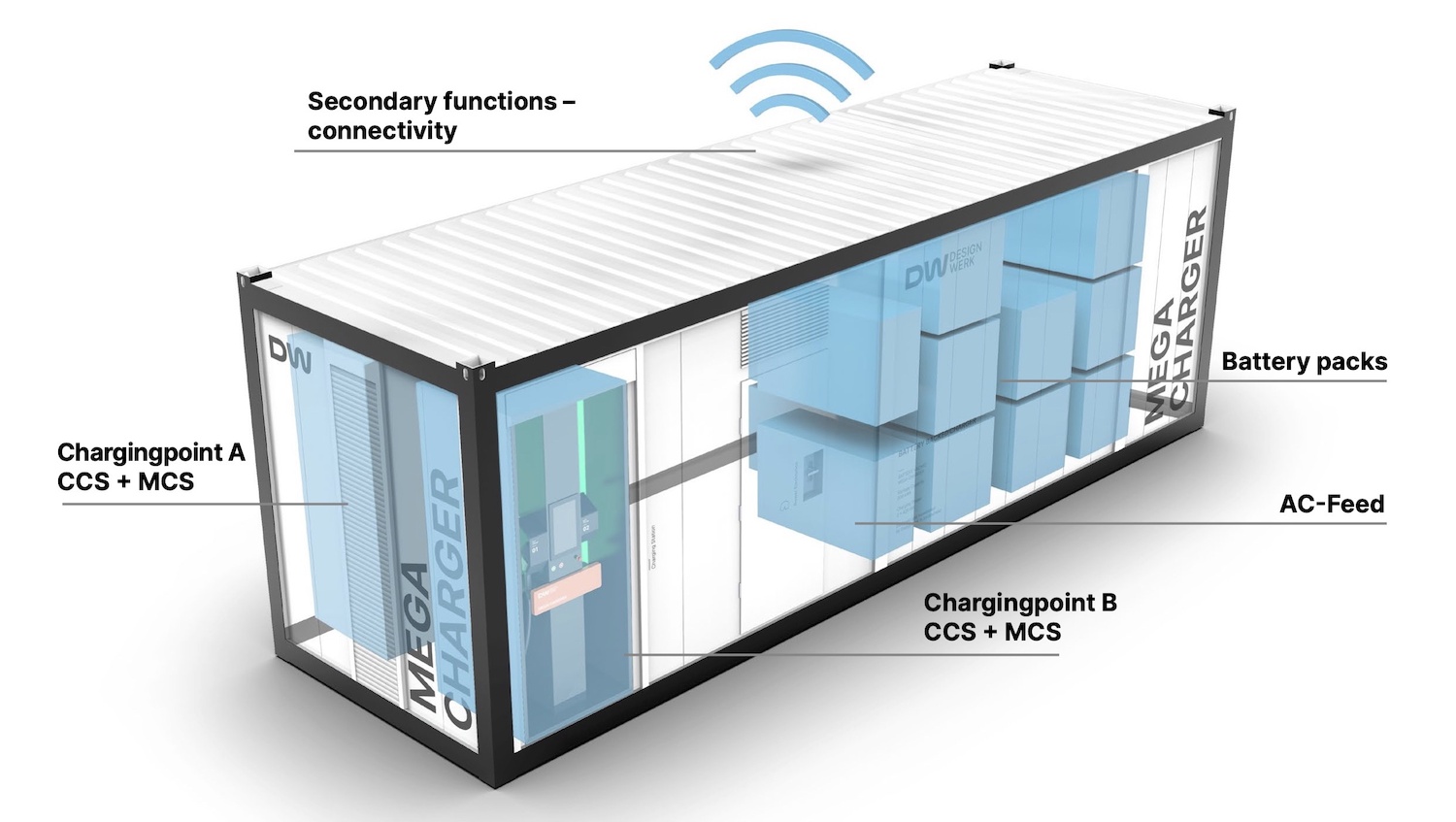

Designwerk has developed a megawatt battery charging system, which is housed in a container and comprises two charging points and a battery storage unit with an energy content of 2,000 kWh and a discharge rating of 1.4 to 2.1 MW. The liquid-cooled charging points come with either an MCS or an CCS plug. The charging capacity when using a CCS is limited to 200 to 350 kW. Both NMC and LFP batteries can be used for the battery storage system. 2nd life batteries may also be an option. The megawatt battery charging system is primarily suitable for trucks, buses and other vehicles that use the MCS standard. The integrated battery storage system allows a significant reduction of the charging station’s grid connection power to just 88 to 400 kW, depending on the design.

Jury statement

Contact Data

Designwerk Technologies Ag

Wülflingerstrasse 147
8408 Winterthur

Mr. Christian Mascarenhas
Phone +41 765882568

Exhibitor at Power2Drive Europe 2024.
Booth C6.219
